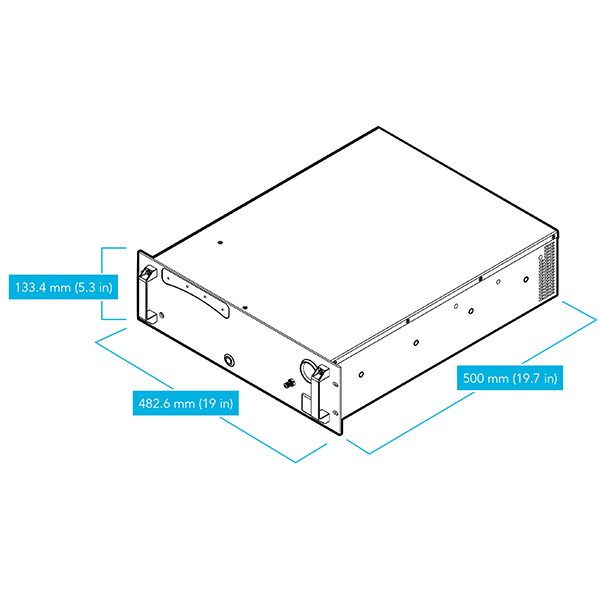

VICI DBS GC Plus Rack Generator line drawing with dimensions

VICI DBS GC Plus Zero Air Generator schematic drawing

Roll over image to zoom in

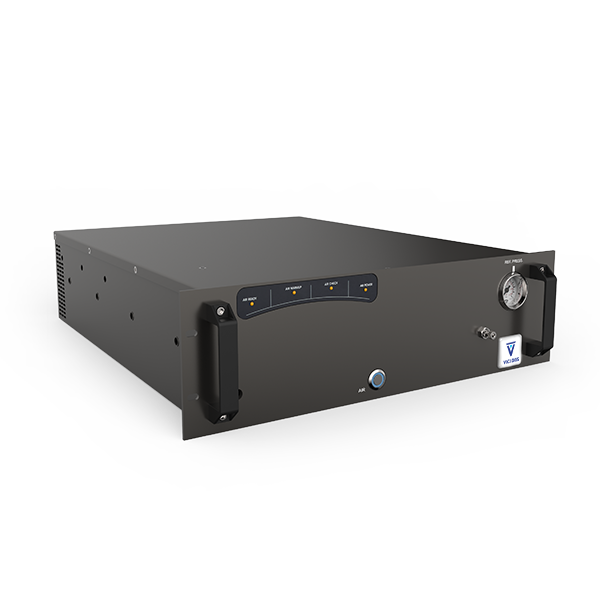

GC Plus 1800 Rack Zero Air Generator

VICI DBSSKU: DB-RGC1800

DESCRIPTION
APPLICATIONS
OPTIONS
SPECS

DESCRIPTION

The GC Plus 1800 Rack Zero Air Generator for a 19" rack cabinet is designed to supply ultra-pure hydrocarbon-free zero air for GC-FID applications. Catalytic oxidation technology eliminates hydrocarbons to 0.1ppm, resulting in a flat, stable baseline, increased sensitivity, and repeatable analysis.

GC PLUS 1800 RACK ZERO AIR FEATURES:
▪︎ Flow rate 1800 mL/min
▪︎ Pressure up to 10 barg (145 psig)
▪︎ Zero air purity <0.1 ppm HC
▪︎ Minimal maintenance
▪︎ 2-year standard warranty

Part# DB-RGC1800-EU (230-240V/50-60Hz)
Part# DB-RGC1800-US (100-110V/60Hz)

APPLICATIONS

ANALYZER APPLICATIONS
▪︎ ONLINE GC-FID
▪︎ MUD LOGGING
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS

OPTIONS

The following options are available:
▪︎ N/A

SPECS

Flow mL/min	1800
Purity - hydrocarbons	<0.1 ppm
Purity - CO	<0.1 ppm
Inlet pressure barg (psig)	4.5 to 10 (65 to 145)
Inlet air quality	Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Max outlet pressure barg (psig)	1 barg (15 psig)drop from inlet
Max HC in	100 ppm
Max CO in	50 ppm
Technology	Platinum catalyst
LED indicators	Power on/off, system ready, errors
Warm-up time (min)	45
Electrical supply	110-120V 60Hz / 220-240V 50Hz
Power consumption watts	200
Product dimensions mm (in)	19"W x 3UH x 500D (19"W x 3UH x 14.7D)
Product weight kg (lb)	15 (33)
Shipping dimensions mm (in)	720W x 565D x 375H (28.3 x 22.2 x 14.7H)
Shipping weight kg (lbs)	19 (42)
Operating temperature ºC (oF)	15 to 35 (59 to 95)
Inlet connection	1/4" compression
Outlet connection	1/8" compression
Certification	CE, FCC, MET (UL and CSA compliant)
