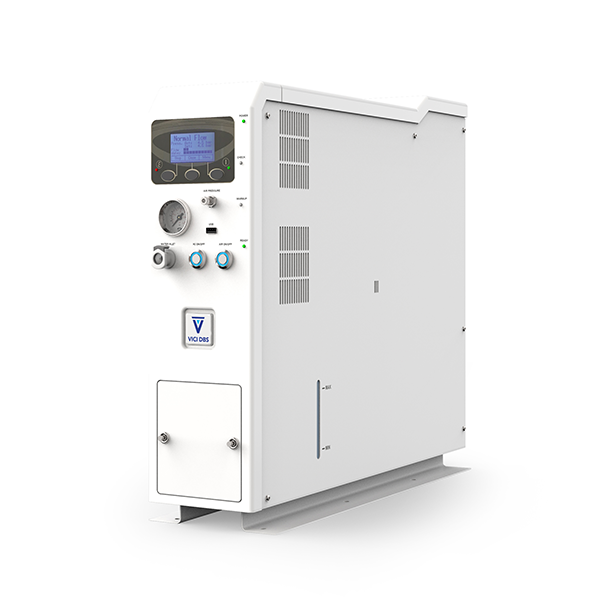

PG Plus 250 FID Tower Hydrogen + Zero Air Generator

VICI DBSSKU: DB-FTHG250

Price:
Quote Only

Overview

The space-saving PG Plus 250 FID Tower Hydrogen + Zero Air Generator uses the latest proton exchange membrane (PEM) technology to produce pure hydrogen.

De-ionized water is automatically loaded from smart internal system tanks with a 3 liter capacity, providing up to 3000 liters of H2 before a refill is required. The only recommended maintenance is replacement of the internal deionizing cartridge, which has been greatly simplified.

PG PLUS 250 FID TOWER FEATURES:
▪︎ Flow rate 250 mL/min
▪︎ Zero Air flow rates 1.8 L/min or 5 L/min
▪︎ Purity >99.9996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique patented membrane drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2 year standard warranty

View Product Brochure

Part# DB-FTHG250-EU (230-240V/50-60Hz)
Part# DB-FTHG250-US (115V/60Hz)
Part# DB-FTHG250-JP (100V/60Hz)

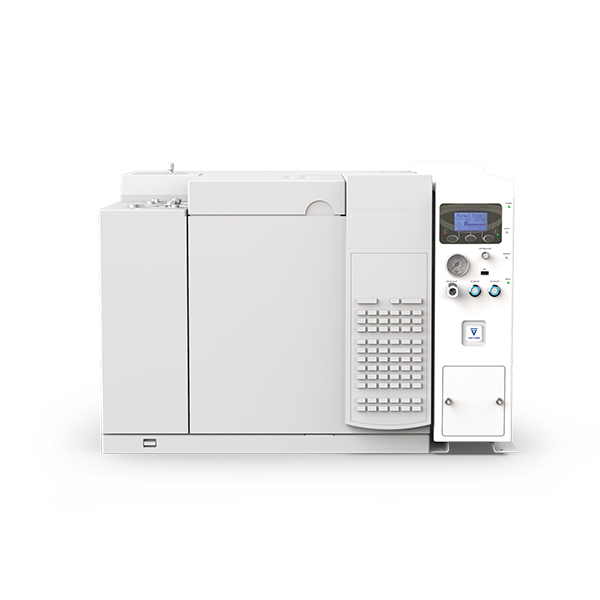

GC APPLICATIONS
▪︎ GC-FID FUEL GAS
▪︎ GC-FPD FUEL GAS
▪︎ GC-NPD PLASMA GAS

ANALYZER APPLICATIONS
▪︎ TOTAL HYDOCARBON ANALYZER (THA) FUEL GAS

▪︎ HYDROGEN REACTORS
▪︎ HYDROGEN FUEL CELLS

The following options are available:
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)
▪︎ Cascading hardware (standard or high purity)
▪︎ H2 Sensor

Flow mL/min 250
Purity >99.9996%
Dew point at 7 barg (100 psig) -25 ºC (-77 ºF)
Outlet pressure barg (psig) 0.5 to 11 (7 to 160)
Technology PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system Regenerative Permeation Membrane
Deionized water quality minimum <1 μS/cm @25 ºC - 1 MΩ-cm@25 ºC - ASTM II
recommended <0.2 μS/cm @25 ºC - 5 MΩ-cm @25 ºC - ASTM II
Internal water tank liters 5
Safety Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display Touch screen with operating parameters, system status and safety alarms
LED indicators Power on/off, system ready, errors
Interface USB mod A
Electrical supply 110-120V 60Hz / 220-240V 50Hz
Power consumption watts 115

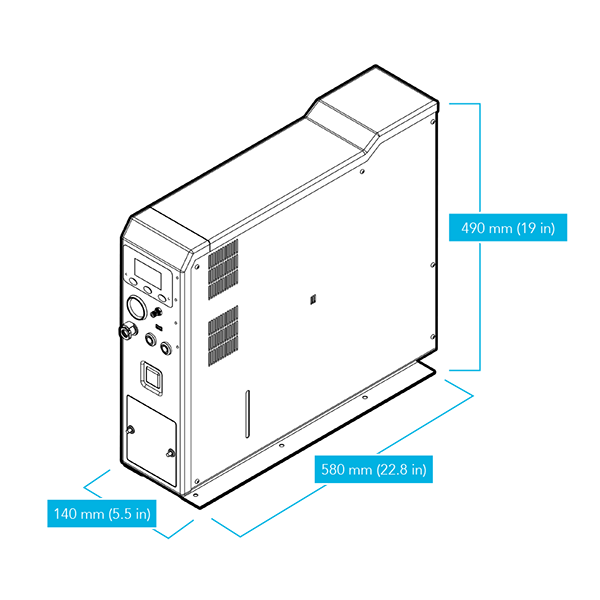

Product Dimensions mm (in) 140W x 490H x 580D (5.5W x 19H x 22.8D)
Product Weight kg (lb) 22 (48.5)
Shipping Dimensions mm (in) 770W x 590H x 410D (30.3W x 23.2H x 16.1D)
Shipping weight kg (lb) 26 (57)
Operating temperature ºC ( ºF) 15 to 35 (59 to 95)
Outlet connection 1/8" compression
Certification CE, FCC, MET (UL and CSA compliant)


+ Zero Air Generator Module Specs

Flow mL/min

1800 5000
Purity - hydrocarbons + CO <0.1 ppm <0.1 ppm
Inlet pressure barg (psig) 4.5 to 10 (65 to 145)
Inlet air quality Clean dry compressed air ISO8573-1:2010 Class 1.2.1
Max outlet pressure barg (psig) 5 (73)
Max HC in 100 ppm
Max CO in 50 ppm
