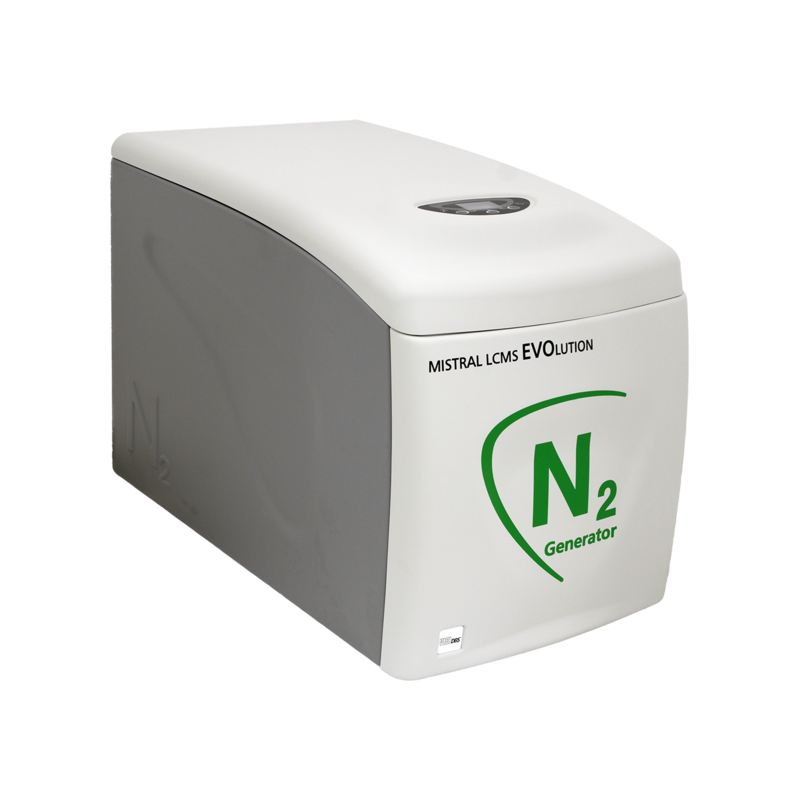

ELSD 40L Mistral Evolution Nitrogen Generator

The VICI DBS Mistral Evolution 40 Nitrogen Generator is specifically designed and built to meet the flow, purity, and pressure requirements of today’s LC-MS systems. It can also be used for the evaporation of solvents in samples being analyzed. The simple but well-proven pressure swing adsorption (PSA) technology is used to separate nitrogen from the other gases present in compressed air.

40L ELSD MISTRAL EVOLUTION FEATURES:
▪︎ Nitrogen flow rate 40 l/min
▪︎ Pressure up to 8 bar (116 psi)
▪︎ Nitrogen purity >99.0 %
▪︎ Minimal maintenance
▪︎ 2 year standard warranty

Part # DB-EVO-40-EU (220V/50Hz)
Part # DB-EVO-40-US (115V/60Hz)

PRODUCTS FOR LC-MS
▪︎ LC-MS INSTRUMENTS: NEBULIZING GAS | CURTAIN GAS | SHIELD GAS | SHEATH GAS | ELECTROSPRAY GAS | APCI GAS | JET STREAM GRADIENT

PRODUCTS FOR SPECTROSCOPY
▪︎ FOURIER TRANSFORM INFRARED SPECTROMETER (FT-IR)

OTHER LAB APPLICATIONS
▪︎ EVAPORATIVE LIGHT SCATTERING DETECTOR (ELSD)
▪︎ CORONA DETECTORS
▪︎ CHARGED AEROSOL (CAD)
▪︎ SAMPLE EVAPORATORS
▪︎ CELL INCUBATORS
▪︎ IVF STEM CELL INCUBATORS

Nitrogen flow rate: 40 Nl/min
Purity N2: >99.5 %
Pressure Nitrogen Outlet: Max 8 bar (116 psi)
Voltage: 110V / 60Hz - 230V / 50Hz
Weight: 90 Kg net
Consumption: 1800 W
Pressure accuracy: 0.1 bar (± 0.5 %)
Display: Graphic Display, 128 x 64 px
Protection: IP2x
Temperature: From 15 °C to 40 °C
Noise: < 60 dB(A)
Alarm relay: 250 VAC, 16 A max
Outlet Nitrogen: Outlet, rapid fitting for 6mm OD tube
Dimensions (mm): 482 x 835 x 641 (L x P x A)
Certification: CE, CSA, FCC
