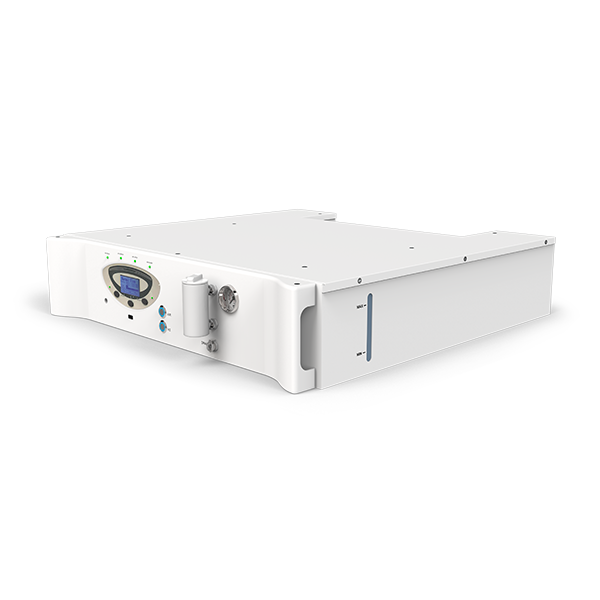

PG Plus 100 FID Station Hydrogen Generator

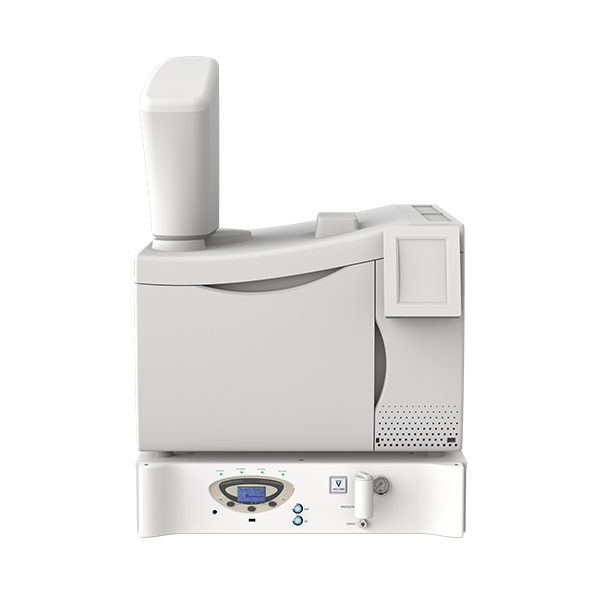

The PG Plus 100 FID Station Hydrogen Generator uses the latest proton exchange membrane (PEM) technology to produce pure hydrogen at a flow rate of 100ml/min. The horizontal format is designed to sit under and support the weight of your GC, optimizing bench space. At only 17 cm high, the generator will still allow easy access to the injectors of any GC on the market.

PG PLUS 100 FID STATION FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity >99.9996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique patented membrane drying system
▪︎ Proprietary 100% titanium cell technology
▪︎ USB connectivity
▪︎ 2 year standard warranty

View Product Brochure

Part# DB-FHG100-EU (230-240V/50-60Hz)
Part# DB-FHG100-US (115V/60Hz)
Part# DB-FHG100-JP (100V/60Hz)

PRODUCTS FOR GC
▪︎ GC-FID FUEL GAS
▪︎ GC-FPD FUEL GAS
▪︎ GC-NPD PLASMA GAS

ANALYZER APPLICATIONS
▪︎ TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS

OTHER LAB APPLICATIONS
▪︎ HYDROGEN FUEL CELLS
▪︎ HYDROGENATION REACTORS

The following options are available:
▪︎ Zero Air Option 1.8 L/min or 5 L/min
▪︎ I/O board
▪︎ Remote control software (RS232 or USB)

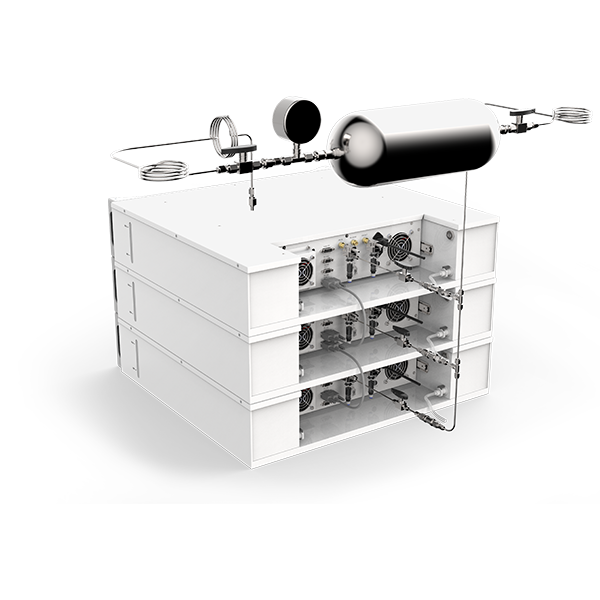

▪︎ Cascading hardware (standard or high purity)
▪︎ H2 Sensor
▪︎ FID-Station MS Extension
